User Documentation

Living Document,

This version:
http://page.mi.fu-berlin.de/ghastermann/fvs-agklein-doc/
Editor:
(Freie Universität Berlin)

Abstract

This is a user documentation for the Finite Volume Solver library which is developed at AG Klein, Freie Universität Berlin. The library provides a framework to solve hyperbolic equations with finite volume methods. It assumes an external structured grid library like [AMReX], [SAMRAI] or [p4est] to adaptively refine regions of interest. One of the main design philosophies is to make the numerical methods re-usable and consistent across different grid implementations. We provide some standard flux methods which can be used out-of-the-box with a large set of hyperbolic equations. Furthermore, a lot of helper classes exist to generate distributed grids for data management which simplifies and modernizes the usage of libraries like [AMReX] or [SAMRAI]. At last, this library is also capable of handling embedded boundaries in a dimensionally split setting as defined in [Klein2009].

1. Installation

1.1. Conan Configuration

We use the C++ package manager conan to install dependencies for this library. conan is a python3 package and installable via the python package manager pip3. To install conan open a terminal and use the command

> pip3 install --user conan

to make user-wide installation. You might need to add ${HOME}/.local/bin to your PATH environment variable in case of a user-wide installation. If you have root access on your machine you can also consider doing a system-wide installation via the command

> sudo pip3 install conan

To test whether conan is installed type conan in your command line window.

Expected Output:

> conanConsumer commands  install    Installs the requirements specified in a recipe (conanfile.py or conanfile.txt).  config     Manages Conan configuration.  get        Gets a file or list a directory of a given reference or package.  info       Gets information about the dependency graph of a recipe.  search     Searches package recipes and binaries in the local cache or in a remote.Creator commands  new        Creates a new package recipe template with a 'conanfile.py' and optionally,             'test_package' testing files.  create     Builds a binary package for a recipe (conanfile.py).  upload     Uploads a recipe and binary packages to a remote.  export     Copies the recipe (conanfile.py & associated files) to your local cache.  export-pkg Exports a recipe, then creates a package from local source and build folders.  test       Tests a package consuming it from a conanfile.py with a test() method.Package development commands  source     Calls your local conanfile.py 'source()' method.  build      Calls your local conanfile.py 'build()' method.  package    Calls your local conanfile.py 'package()' method.  editable   Manages editable packages (package that resides in the user workspace, but are             consumed as if they were in the cache).  workspace  Manages a workspace (a set of packages consumed from the user workspace that             belongs to the same project).Misc commands  profile    Lists profiles in the '.conan/profiles' folder, or shows profile details.  remote     Manages the remote list and the package recipes associated to a remote.  user       Authenticates against a remote with user/pass, caching the auth token.  imports    Calls your local conanfile.py or conanfile.txt 'imports' method.  copy       Copies conan recipes and packages to another user/channel.  remove     Removes packages or binaries matching pattern from local cache or remote.  alias      Creates and exports an 'alias package recipe'.  download   Downloads recipe and binaries to the local cache, without using settings.  inspect    Displays conanfile attributes, like name, version and options. Works locally, in             local cache and remote.  help       Shows help for a specific command.  graph      Generates and manipulates lock files.Conan commands. Type "conan <command> -h" for help

As a first step, you have to create a conan profile, which describes which toolchain you want to use. To create an auto-detected tool-chain use the command

> conan profile new default --detect

In the case of GCC make sure to use the C++11 ABI. Unfortunately, conan does not choose this by default and we have to adjust the configuration by

> conan profile update settings.compiler.libcxx=libstdc++11 default> conan profile show defaultConfiguration for profile default:[settings]os=Linuxos_build=Linuxarch=x86_64arch_build=x86_64compiler=gcccompiler.version=9compiler.libcxx=libstdc++11build_type=Release[options][build_requires][env]

Note: The library needs a minimum GCC version of 7 or a minimum LLVM clang version of 5. We regularly test in our CI at GitLab GCC version 9 and clang version 8.

We added some custom installation recipes which conan can use to install dependencies like [AMReX] or [HDF5]. These are stored in a conan repository and we need to point conan to this repository. This is done via the command line

> conan remote add gitlab https://git.imp.fu-berlin.de/api/v4/packages/conan> conan user <username> -r gitlab -p <api-key>
Hereby is the login name for gitlab and is a personal access token provided by gitlab at git.imp.fu-berlin.de.

The access token can be created via the user symbol on the top right of the gitlab interface, Settings->Access Tokens (check api).

1.2. MPI Installation

Make sure to have some MPI implementation on your system such that your current conan profile can link against it. This can be achieved by adapting the compiler option of your profile.

1.3. CMake Installation

CMake is a build generation tool and generates build configuration as Makefiles for example.

Before we start installing all dependencies with conan we need to install a rather new version of CMake. AMReX requires a minimal CMake version of 3.14. Fortunately CMake is quite simple to download and binary packages can be found here.

1.4. Building the Library

First use git and clone the library to a local directory

> git clone git@git.imp.fu-berlin.de:ag-klein/FiniteVolumeSolver.git

If you want to build the unit tests you need to pull Catch2 as a git submodule. Enter the source direction and call

> cd FiniteVolumeSolver/./FiniteVolumeSolver> git submodule update --init

This will checkout the develop branch by default and create a folder named with relative path ./FiniteVolumeSolver. Next, we create an out-of-source build directory where we want to build the library archives and example binaries.

./FiniteVolumeSolver> mkdir build./FiniteVolumeSolver> cd build./FiniteVolumeSolver/build> cd build

Inside the build directory we use conan to install the dependencies with the options which we want to use. AMReX for examples has the following configurable build options:

AMReX:eb = True|False [True] # enable embedded boundaries / cut-cellsAMReX:omp = True|False [True] # enable OpenMP parallelizationAMReX:dim = 1|2|3 [3] # spatial dimension used by AMReX

To install [AMReX] with embedded boundaries and without OpenMP support (there is no OpenMP support on Apple for example) use within the build directory

./FiniteVolumeSolver/build> conan install <Path-to-FiniteVolumeSolver-Source-Dir> -o AMReX:dim=2 -o AMReX:omp=False

In our case

./FiniteVolumeSolver/build> conan install ../ -o AMReX:dim=2 -o AMReX:omp=False

This will look into the file FiniteVolumeSolver/conanfile.txt and tries to locally install all dependencies which are listed there. After installing these it creates a conanfile.cmake in the build directory which will be read by our CMakeLists.txt file. This, in turn, injects all necessary include and library paths which we need to build our application. Now we use cmake to configure our specific build, i.e.

./FiniteVolumeSolver/build> cmake ../

to configure a Debug build, or

./FiniteVolumeSolver/build> cmake ../ -DCMAKE_BUILD_TYPE=Release

for a Release build. On Linux and macOS this will create Makefiles by default which you can invoke by typing

./FiniteVolumeSolver/build> make

which should build all targets. For other systems, a more general call would be

./FiniteVolumeSolver/build> cmake --build .

1.4.1. Useful build flags

  • If you want to link to another python version then the default one you can pass

        -DPYBIND11_PYTHON_VERSION=3.8
    or directly specify the python executable by
        -DPYTHON_EXECUTABLE=/path/to/python

If some targets fail to build feel free to raise an issue in GitLab.

2. Code Overview

We use a layered library design to achieve separation of concerns. One of the main goals is to have reusable implementations for algorithms which are independent of the concrete storage backend. We use namespaces to indicate the dependency on various structured grid libraries such as AMReX or SAMRAI. All components inside of the namespace fub are independent of the concrete AMR backend. Classes and functions of the namespaces fub::amrex or fub::samrai depend on their respective libraries.

This library provides tools to write driver files which form complete applications. Each driver makes its own choices on how to handle program options, input files or its output. You can find many example applications in the examples/ subfolder within the Git project. Every example composes layer for layer until a solver is built and run. An application needs to build up its layers in the following order

  1. PatchHierarchy (data storage)

  2. GriddingAlgorithm (algorithmic choice)

  3. IntegratorContext (data storage / algorithmic choice)

  4. one or more composed LevelIntegrators (algorithmic choice)

  5. SubcycleSolver (algorithmic choice)

Note: Each layer in this list is implemented in terms of its predecessor.

2.1. Policy Pattern

To provide customization points for the many algorithmic choices in an AMR-enabled simulation we make heavy use of the so-called policy pattern.

Wikipedia: In computer programming, the strategy pattern (also known as the policy pattern) is a behavioral software design pattern that enables selecting an algorithm at runtime. Instead of implementing a single algorithm directly, code receives run-time instructions as to which in a family of algorithms to use.

For each algorithmic customization point, we define a concept, which is simply a set of syntactic requirements. Any type which satisfies a particular policy concept can be used as a drop-in replacement for existing algorithms to adjust the method for your special needs. The customization points are chosen to be orthogonal and thus enable them to freely concentrate on a single aspect of the method.

Any class which has a member function called UpdateConservatively with a sufficient function signature satisfies the policy concept for TimeIntegrator<IntegratorContext>. This leads to a parametrization of the algorithm in terms of objects. One could, in the case of a TimeIntegrator for example, have multiple implementations for different parallelization strategies, as in the following code snippet
fub::amrex::HypberbolicMethod method{};if (is_gpu_enabled) {  method.time_integrator       = fub::amrex::EulerForwardTimeIntegrator(fub::execution::gpu);} else {  method.time_integrator       = fub::amrex::EulerForwardTimeIntegrator(fub::execution::openmp);}

The notion of concepts will be part of the C++ language as of the C++20 standard. With compilers which will support C++20 concepts already, this type requirement can be expressed in the code as in

template <typename TI, typename IntegratorContext>concept TimeIntegrator = std::copy_assignable<TI> && requires (    TI& time_integrator, IntegratorContext& context, int level, Duration dt,    Direction dir) {  { time_integrator.UpdateConservatively(context, level, dt, dir) };};

2.2. Data Storage: PatchHierarchy

A PatchHierarchy allocates simulation data for each refinement level on a PatchLevel and can be either generated by a GriddingAlgorithm or can be initialized from a checkpoint to restart a simulation. Data on a patch hierarchy shall represent a valid spatial state at some time point and does not contain a ghost cell layer. The allocated data can be either associated to be cell-, node- or face-centered. The required data allocation is described by an object of type DataDescription, which is defined as

struct DataDescription {  int n_cell_components{0};  int n_node_components{0};  int n_face_components{0};  int dimension{AMREX_SPACEDIM};};

Note: A patch hierarchy does not know what the components represent. It does not have an equation object as context and does not need it. Its only responsibility is to manage a certain amount of data over multiple levels and distributed over MPI ranks.

Note: [AMReX] represents hierarchies very often as pairs of (Vector<MultiFab*>, Vector<Geometry>) where the vector is taken over the number of refinement levels. One can interpret a PatchHierarchy as an equivalent representation.

2.3. Algorithmic Choice: GriddingAlgorithm

A gridding algorithm adds some algorithmic choices to the patch hierarchy which are needed for the box generation algorithms in the context of adaptive mesh refinement. The present gridding algorithms use the AmrCore class from the [AMReX] library to generate a distributed hierarchy of index boxes. It owns a patch hierarchy and initializes or modifies it. It uses a TaggingMethod policy object to mask cells that need additional refinement. In addition to the TaggingMethod policy, a GriddingAlgorithm also needs boundary and initial conditions, given by BoundaryCondition and InitialData policy objects. The boundary conditions are used in communication routines to fill the ghost cell layer touching the computational domain, whereas the initial conditions are only used once at the beginning of a simulation.

The following code example will create an initialized and adaptively refined patch hierarchy.
#include "fub/AMReX.hpp"#include "fub/Solver.hpp"struct CircleData {  void InitializeData(fub::amrex::PatchLevel& patch_level,                      const fub::amrex::GriddingAlgorithm& grid, int level,                      fub::Duration /*time*/) const {    const amrex::Geometry& geom = grid.GetPatchHierarchy().GetGeometry(level);    amrex::MultiFab& data = patch_level.data;    fub::amrex::ForEachFab(data, [&](const amrex::MFIter& mfi) {      const ::amrex::Box& box = mfi.tilebox();      amrex::FArrayBox& fab = data[mfi];      fub::amrex::ForEachIndex(box, [&](int i, int j) {        const double x = geom.CellCenter(i, 0);        const double y = geom.CellCenter(j, 1);        const double norm2 = x * x + y * y;        constexpr double r2 = 0.25 * 0.25;        amrex::IntVect iv(i, j);        if (norm2 < r2) {          fab(iv, 0) = 3.0;        } else {          fab(iv, 0) = 1.0;        }      });    });  }};int main() {  fub::amrex::ScopeGuard guard{};  constexpr int Dim = AMREX_SPACEDIM;  static_assert(AMREX_SPACEDIM == 2);  const std::array<int, Dim> n_cells{128, 128};  const std::array<double, Dim> xlower{-1.0, -1.0};  const std::array<double, Dim> xupper{+1.0, +1.0};  fub::Advection2d equation{{1.0, 1.0}};  fub::amrex::CartesianGridGeometry geometry;  geometry.cell_dimensions = n_cells;  geometry.coordinates = amrex::RealBox(xlower, xupper);  geometry.periodicity = std::array<int, Dim>{1, 1};  fub::amrex::PatchHierarchyOptions hier_opts{};  hier_opts.max_number_of_levels = 4;  fub::amrex::PatchHierarchy hierarchy(equation, geometry, hier_opts);  using State = fub::Advection2d::Complete;  fub::amrex::GradientDetector gradient{equation,                                        std::pair{&State::mass, 1e-2}};  auto gridding = std::make_shared<fub::amrex::GriddingAlgorithm>(      hierarchy, CircleData{}, gradient);  gridding->InitializeHierarchy(0.0);  fub::amrex::WritePlotFile("InitialHierarchy/plt00000",                            gridding->GetPatchHierarchy(), equation);}

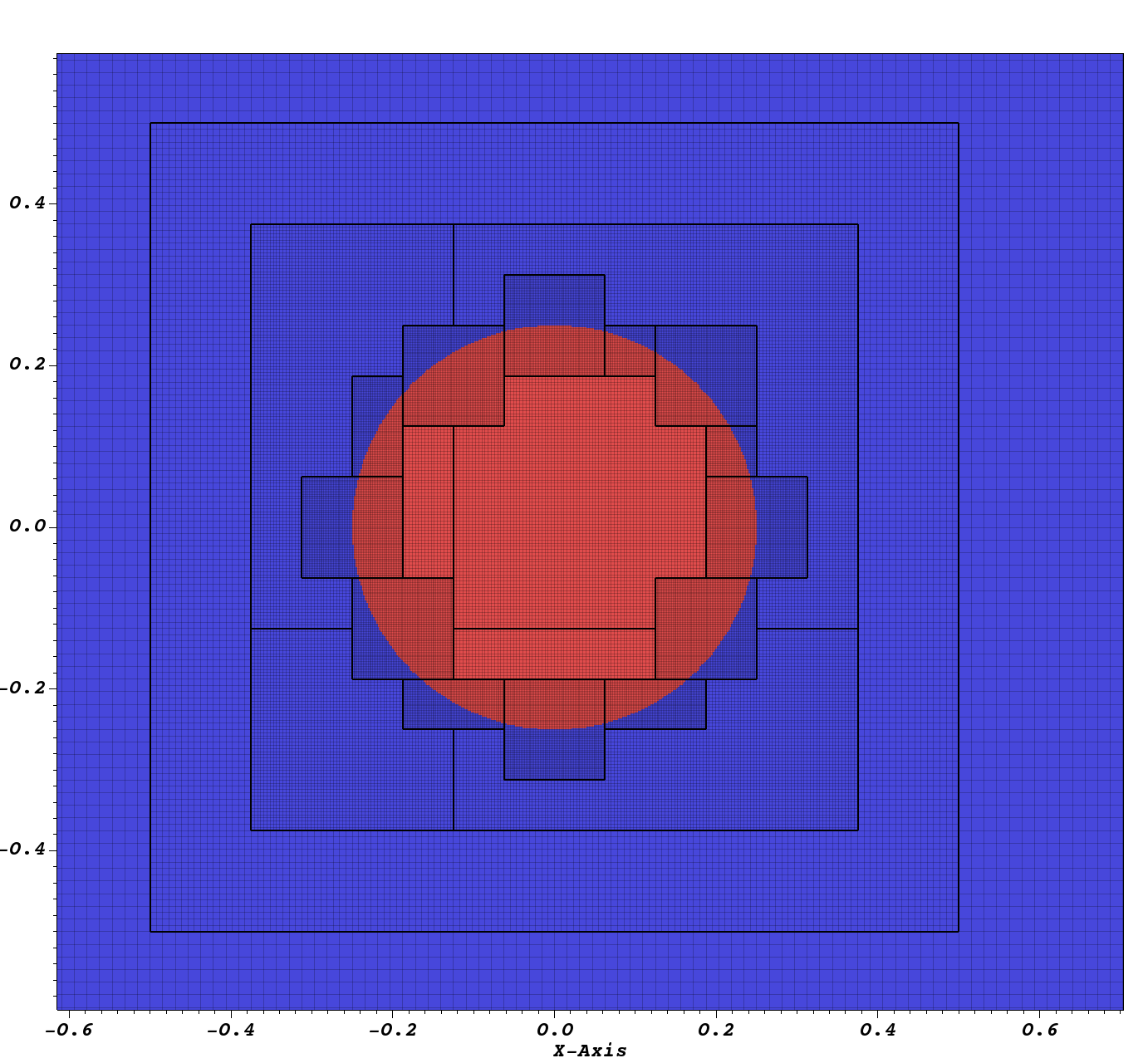

This example produces the following figure and can be visualized either in VisIt, Paraview or python-yt.

Copying a GriddingAlgorithm object will deeply copy its data and its policy objects on each MPI rank. This is useful if one wants to make a backup of the current grid state. The GriddingAlgorithm provides three customization points. Their concepts InitialData<GriddingAlgorithm>, TaggingMethod<GriddingAlgorithm> and BoundaryCondition<GriddingAlgorithm> are defined as

template <typename I, typename GriddingAlgorithm>concept InitialData = std::copy_assignable<I> &&     requires (const I& initial_data, const GriddingAlgorithm& grid, int level) {        { initial_data.InitializeData(grid, level) };    }template <typename T, typename GriddingAlgorithm>concept TaggingMethod = std::copy_assignable<T> &&     requires (const T& tagging_method, ::amrex::TagBoxArray& tags, const GriddingAlgorithm& grid, int level) {        { tagging_method.TagCellsForRefinement(tags, grid, level) };    }template <typename BC, typename GriddingAlgorithm>concept BoundaryCondition = std::copy_assignable<BC> &&     requires (const BC& boundary_condition, ::amrex::MultiFab& data, const GriddingAlgorithm& grid, int level) {        { boundary_condition.FillBoundary(data, grid, level) };    }

You find polymorphic value types AnyInitialData<GriddingAlgorithm>, AnyTaggingMethod<GriddingAlgorithm> and AnyBoundaryCondition<GriddingAlgorithm> in the Finite Volume Solver library to match each one of the concepts. These polymorphic types are used to store any object of a class that satisfies those concepts.

The class fub::amrex::GriddingAlgorithm is internally defined in something like
class GriddingAlgorithm : private ::amrex::AmrCore {private:    PatchHierarchy hierarchy_;    AnyInitialData initial_data_;    AnyTaggingMethod tagging_method_;    AnyBoundaryCondition boundary_condition_;public:    /* etc... */};

2.4. Data Storage: IntegratorContext

An IntegratorContext allocates, manages and provides access to additional data that is needed for every conservative AMR scheme, such as cell-centered and face-centered data arrays with ghost layers. It also manages face-centered data on the coarse-fine interface between two refinement levels.

The following code snippet shows a how to access cell and face-based data with ghost cells using the [AMReX] toolbox. This implements parallelization for GPU with a fallback to an MPI/OpenMP hybrid. This class satisfies the TimeIntegrator<fub::amrex::IntegratorContext> concept.
class GpuTimeIntegrator {  /// \brief This function computes a conservative time update for cells in  /// direction dir  ///  /// This specific implementation uses the AMReX tools to do the job  void UpdateConservatively(IntegratorContext& context, int level, Duration dt,                            Direction dir) {    using namespace amrex;    MultiFab& states = context.GetScratch(level);    const MultiFab& fluxes = context.GetFluxes(level, dir);    const int n_conservative_variables = context.GetNConservativeVariables();    const double dx = context.GetCellSize(level, dir);    const double lambda = dt.count() / dx;  #ifdef _OPENMP  #pragma omp parallel if (Gpu::notInLaunchRegion())  #endif    for (MFIter mfi(cells, TilingIfNotGPU()); mfi.isValid(); ++mfi) {      FArrayBox& qs = cells[mfi];      const FArrayBox& fs = fluxes[mfi];      const Box cell_box = mfi.growntilebox();      Array4<double> q = qs.array();      Array4<const double> f = fs.array();      ParallelFor(cell_box, n_conservative_variables,                  [=] AMREX_GPU_DEVICE(int i, int j, int k, int var) {                    std::array<int, 3> iv{i, j, k};                    std::array<int, 3> iL = iv;                    std::array<int, 3> iR = Shift(iv, dir, 1);                    q(iv, var) = q(iv, var) + lambda * (f(iL, var) - f(iR, var));                  });    }  }};

In addition to managing the additional data, every integrator context defines a comprehensive list of functions to deal with the various data locations. The IntegratorContext concept is defined by

template <typename I>concept IntegratorContext = std::copy_assignable<I> && requires (      I& integrator_context, int level, Duration dt, Direction dir,      double scale, BoundaryCondition& bc) {  // Access PatchLevel Data  { integrator_context.GetGriddingAlgorithm() };  { integrator_context.GetData(level) };  { integrator_context.GetScratch(level) };  { integrator_context.GetFluxes(level, dir) };  // Coarse-fine interface interaction  { integrator_context.ApplyFluxCorrection(level, level - 1) };  { integrator_context.ResetCoarseFineFluxes(level, level - 1) };  { integrator_context.AccumulateCoarseFineFluxes(level, scale, dir) };  // Action on scratch  { integrator_context.CoarsenConservatively(level, level - 1) };  { integrator_context.CompleteFromCons(level) };  // Copy data  { integrator_context.CopyDataToScratch(level) };  { integrator_context.CopyScratchToData(level) };  // Fill ghost layers within scratch  { integrator_context.FillGhostLayerTwoLevels(level, bc, level - 1, bc) };  { integrator_context.FillGhostLayerTwoLevels(level, level - 1) };  { integrator_context.FillGhostLayerSingleLevel(level, bc) };  { integrator_context.FillGhostLayerSingleLevel(level) };  // Reallocate internal data from level   { integrator_context.ResetHierarchyConfiguration(level) };};

This is the minimum amount of functions needed to build common conservative AMR schemes on top of an AMR library like [AMReX] or [SAMRAI]. The implementation of an IntegratorContext will, in general, be very library-specific. The layers after the IntegratorContext describe parts of the AMR time integration which are implemented on those concepts only.

Nevertheless, we still refine this concept to better fit the dimensionally split time integration.

template <typename I>concept DimensionalSplitIntegratorContext = IntegratorContext<I> && requires (      I& integrator_context, int level, Duration dt, Direction dir,      double scale) {  { integrator_context.ComputeNumericFluxes(level, dt, dir) };  { integrator_context.ComputeStableDt(level, dir) };  { integrator_context.UpdateConservatively(level, dir) };};

Each integrator context which is currently implemented satisfies the DimensionalSplitIntegratorContext. The functions ComputeStableDt, ComputeNumericFluxes, UpdateConservatively and CompleteFromCons are customization points for those imlpementations. I. e. one needs to provide objects for the policy concepts FluxMethod<IntegratorContext>, TimeIntegrator<IntegratorContext> and CompleteFromConsCalculation<IntegratorContext> to define the behaviour of those functions.

The list of the currently implemented integrator contexts is

  • fub::amrex::IntegratorContext

  • fub::amrex::CompressibleAdvectionIntegratorContext

  • fub::amrex::cutcell::IntegratorContext

  • fub::amrex::MultiBlockIntegratorContext

  • fub::samrai::IntegratorContext

The MultiBlockIntegratorContext class is special, because it is composed of two vectors std::vector<fub::amrex::IntegratorContext> and std::vector<fub::amrex::cutcell::IntegratorContext> where each integrator context describes a computational domain. Instead of defining policy objects for the composed context one provides them for each member context.

2.5. Algorithmic Choice: IntegratorContext

We now describe the customization points for an integrator context. Its concepts FluxMethod<IntegratorContext>, TimeIntegrator<IntegratorContext> and CompleteFromConsCalculation<IntegratorContext> are defined as

template <typename FM, typename IntegratorContext>concept FluxMethod = std::copy_assignable<FM> && requires (    FM& flux_method, IntegratorContext& context, int level, Duration dt,    Direction dir) {  { flux_method.ComputeNumericFlux(context, level, dt, dir) };  { flux_method.ComputeStableDt(context, level, dir) } -> Duration;  { FM::GetStencilSize() } -> std::integral_constant<int, StencilSize>;};template <typename TI, typename IntegratorContext>concept TimeIntegrator = std::copy_assignable<TI> && requires (    TI& time_integrator, IntegratorContext& context, int level, Duration dt,    Direction dir) {  { time_integrator.UpdateConservatively(context, level, dt, dir) };};template <typename R, typename IntegratorContext>concept CompleteFromConsCalculation = std::copy_assignable<R> && requires(    R& reconstruct, IntegratorContext& context, int level) {  { reconstruct.CompleteFromCons(context, level) };};

The member function ComputeStableDt shall return a time step size \( \Delta t \) such that the CFL condition for the time integration is satisfied. The ComputeNumericFluxes shall fill the face-centered flux arrays in the specified direction which will be used by the TimeIntegrator to update the conservative state variables.

The TimeIntegrator provides the usual conservative scheme for cell-based time updates

\[ u^{n+1}_i = u^n_i + \frac{\Delta t}{\Delta x} \left( F^n_{i - \frac 12} - F^n_{i + \frac 12} \right). \]

The numerical fluxes \( F^n_i \) in this update denote the fluxes on the faces of the specified direction and are computed by the FluxMethod which is configured for this integrator context.

An AMR integration scheme may use the CompleteFromConsCalculation policy object whenever it changes the conservative variables to establish a valid state across all fields in the patch hierarchy.

We collect the three customization points for the IntegratorContext in a class which we call HyperbolicMethod<IntegratorContext>. It is defined as

template <typename IntegratorContext>struct HyperbolicMethod {  AnyFluxMethod<IntegratorContext> flux_method;  AnyTimeIntegrator<IntegratorContext> time_integrator;  AnyCompleteFromConsCalculation<IntegratorContext> reconstruct;};
To construct an IntegratorContext object one needs to provide a GriddingAlgorithm and a HyperbolicMethod. The following code snippet shows how a concrete integrator context might be constructed in a driver file.
void MyMain(const fub::ProgramOptions& opts) {  std::chrono::steady_clock::time_point wall_time_reference =      std::chrono::steady_clock::now();  fub::amrex::ScopeGuard guard{};  fub::Advection2d equation{{1.0, 1.0}};  fub::SeverityLogger log = fub::GetInfoLogger();  fub::amrex::CartesianGridGeometry geometry = fub::GetOptions(opts, "GridGeometry");  BOOST_LOG(log) << "GridGeometry:";  geometry.Print(log);  fub::amrex::PatchHierarchyOptions hier_opts = fub::GetOptions(opts, "PatchHierarchy");  BOOST_LOG(log) << "PatchHierarchy:";  hier_opts.Print(log);   using State = fub::Advection2d::Complete;  fub::amrex::GradientDetector gradient{equation,                                        std::pair{&State::mass, 1e-3}};  std::shared_ptr grid = std::make_shared<fub::amrex::GriddingAlgorithm>(      fub::amrex::PatchHierarchy(equation, geometry, hier_opts), CircleData{},      fub::amrex::TagAllOf(gradient, fub::amrex::TagBuffer(2)));  grid->InitializeHierarchy(0.0);  fub::amrex::HyperbolicMethod method{      fub::amrex::FluxMethodAdapter(fub::GodunovMethod{equation}),      fub::amrex::EulerForwardTimeIntegrator(), fub::amrex::NoReconstruction{}};  fub::amrex::IntegratorContext context(grid, method);    // Now further use the context to do some things...}

In addition to computing the mathematical correct formula, an object that satisfies FluxMethod<IntegratorContext> needs to repeat the logic of how to parallelize and how to iterate over the multi-dimensional index space. We recognize that these are two orthogonal concerns which are both hard to get right. To ease the burden for authors of a FluxMethod we introduced some helper classes which separate these concerns. They will be discussed in more detail in Chapter 3.

2.6. Algorithmic Choice: LevelIntegrator

Level integrators have the task to advance the solution in time for a single refinement level only. They will be used by larger subcycle schemes which may, in general, do smaller time steps on finer refinement levels. We define the concept LevelIntegrator such that it provides two functions AdvanceLevelNonRecursively and ComputeStableDt.

template <typename L>concept LevelIntegrator = std::copy_assignable<L> && requires (const L& level_integrator, int level, Duration dt, std::pair<int, int> subcycle) {  { level_integrator.AdvanceLevelNonRecursively(level, dt, subcycle) } -> Result<void, TimeStepTooLarge>;  { level_integrator.ComputeStableDt(level) } -> Duration;};

The name AdvanceLevelNonRecursively emphasizes that this function will be called within a recursive subcycle algorithm. We call level integrators which provide an integrator context HyperbolicSystemLevelIntegrator. An integrator context extents level integrators with functions such as ApplyFluxCorrection, CoarsenConservatively or CompleteFromCons. These additional functions will be used in a subcycle algorithm to maintain the conservation of the solution across refinement levels.

template <typename HS>concept HyperbolicSystemLevelIntegrator = LevelIntegrator<S> && requires (const L& level_integrator) {  // Access underlying data storage implementation  { level_integrator.GetIntegratorContext() } -> IntegratorContext;};

This library includes currently the following list of level integrators

  • DimensionalSplitLevelIntegrator (satisfies HyperbolicSystemLevelIntegrator)

  • SystemSourceLevelIntegrator (satisfies HyperboilcSystemLevelIntegrator)

  • BK19LevelIntegrator (satisfies HyperbolicSystemLevelIntegrator)

  • KineticSourceTerm (satisfies LevelIntegrator)

  • AxialSourceTerm (satisfies LevelIntegrator)

  • IgniteDetonation (satisfies LevelIntegrator)

SystemSourceLevelIntegrator and BK19LevelIntegrator are so-called composed level integrators. This means, in order to build one of those level integrators you need to provide at least one HyperbolicSystemLevelIntegrator. The only HyperbolicSystemLevelIntegrator currently defined in the library is the DimensionalSplitLevelIntegrator which applies dimensional operator splitting ontop of a DimensionalSplitIntegratorContext.

A DimensionalSplitLevelIntegrator is constructible by providing a DimensionalSplitIntegratorContext and SplittingMethod, such as GodunovSplitting or StrangSplitting. A single dimensionally split time step includes the following steps

  // Apply boundary condition for the physical boundary only.  Context::ApplyBoundaryCondition(this_level, dir);  // Check stable time step size and if the CFL condition is violated then  // restart the coarse time step  const Duration local_dt = Context::ComputeStableDt(this_level, dir);  MPI_Comm comm = GetMpiCommunicator();  const Duration level_dt = MinAll(comm, local_dt);  if (level_dt < split_dt) {    return TimeStepTooLarge{level_dt, this_level};  }  // Compute fluxes in the specified direction  Context::ComputeNumericFluxes(this_level, split_dt, dir);  // Use the updated fluxes to update cons variables at the "SCRATCH"  // context.  Context::UpdateConservatively(this_level, split_dt, dir);  // A time update happened on conservative variables.  // We have to re-establish a valid complete state.  Context::CompleteFromCons(this_level, split_dt);  // Accumulate the fluxes on the coarse fine interface  const double scale = split_dt.count();  Context::AccumulateCoarseFineFluxes(this_level, scale, dir);

2.7. Algorithmic Choice: SubcycleSovler

Finally, subcycle solvers define in which order level integrators are applied on the refinement level of a hierarchy. They define the functions ComputeStableDt and AdvanceLevel.

template <typename S>concept SubcycleSolver = std::copy_assignable<S> && requires (const S& solver, int level, Duration dt) {  { solver.ComputeStableDt() } -> Duration;  { solver.AdvanceLevel(level, dt) } -> Result<void, TimeStepTooLarge>;};

The AdvanceLevel function advances all levels finer or equal than the specified level. Most implementations define this function recursively.

An examplary implementation of an recursive AdvanceLevel function is given here.
template <typename LevelIntegrator>Result<void, TimeStepTooLarge>SubcycleFineFirstSolver<LevelIntegrator>::AdvanceLevel(    int this_level, Duration dt, std::pair<int, int> subcycle) {  // PreAdvanceLevel might regrid all finer levels.  // The context must make sure that scratch data is allocated  PreAdvanceLevel(this_level, dt, subcycle);  auto scale_dt_on_error = [this](Result<void, TimeStepTooLarge> result) {    TimeStepTooLarge error = result.error();    int ratio = GetTotalRefineRatio(error.level);    error.level = 0;    error.dt *= ratio;    return error;  };  // If a finer level exists in the hierarchy, we subcycle that finer level  // multiple times and use the fine fluxes on coarse-fine interfaces  const int next_level = this_level + 1;  if (LevelExists(next_level)) {    ResetCoarseFineFluxes(next_level, this_level);    const int refine_ratio = GetRatioToCoarserLevel(next_level).max();    for (int r = 0; r < refine_ratio; ++r) {      auto result =          AdvanceLevel(next_level, dt / refine_ratio, {r, refine_ratio});      if (!result) {        return scale_dt_on_error(result);      }    }  }  Result<void, TimeStepTooLarge> result =      AdvanceLevelNonRecursively(this_level, dt, subcycle);  if (!result) {    return scale_dt_on_error(result);  }  if (LevelExists(next_level)) {    ApplyFluxCorrection(next_level, this_level, dt);  }  // Coarsen inner regions from next finer level to this level.  if (LevelExists(next_level)) {    CoarsenConservatively(next_level, this_level);    // The conservative update and the coarsening happened on conservative    // variables. We have to reconstruct the missing variables in the complete    // state.    CompleteFromCons(this_level, dt);  }  CopyScratchToData(this_level);  // Apply any further context related work after advancing this level.  // This function can also indicate if some error occured.  // For example the context could detect unphysical states and return a  // TooLargeTimeStep error condition.  result = PostAdvanceLevel(this_level, dt, subcycle);  if (!result) {    return scale_dt_on_error(result);  }  return result;}

The present subcycle solvers depend on a level integrator only. Future solvers may need additional options that may decsribe varying subcycle ratios between pairs of refinement levels.

3. Framework for defining FluxMethods

The FluxMethod<IntegratorContext> policy is very generic and allows all kinds of possible logic in user-defined flux methods. We provide adapter classes to separate the technical aspects of computing those numerical fluxes from the mathematical ones. To achieve this separation we begin by introducing the notion of an equation. An equation gives context to the components of a multi-dimensional array and provides the mathematical dependencies needed. Using those tools we allow a formulation \( F(q(x, t), dx, dt) \) of flux methods, which depend on a stencil of equation states only.

3.1. Equation: Conservative and Complete States

The Finite Volume Solver defines so-called equation classes, for example, Advection2d or PerfectGas<Rank>. Each equation defines two kinds of states: Conservative and Complete states. The conservative states contain variables which see a hyperbolic time update of a time integrator. The complete state variables are a superset of the conservative ones and may define more auxiliary member variables. This is reasonable for variables which are needed very often but have a high computation cost. The complete state is the location to cache those expensive computations.

For example, the template class template <int Rank> class PerfectGas defines the conservative variables
template <int Rank> struct PerfectGasConservative {  double density;  Array<double, Rank> momentum;  double energy;};

and the complete state variables are

template <int Rank> struct PerfectGasComplete : PerfectGasConservative<Rank> {  double pressure;  double speed_of_sound;};

Given a MultiFab object we can iterate over all local FArrayBox objects using the MFIter iterator as in this simplified example:

template <typename Function>void DoSomethingForEachFArrayBox(amrex::MultiFab& multifab) {  for (amrex::MFIter mfi(multifab); mfi.isValid(); ++mfi) {    amrex::FArrayBox& fab = multifab[mfi];    // do something...  }}

amrex::FArrayBox is a container type in [AMReX] that stores a multi-dimensional data array for a single patch. By using an equation object we can view this amrex::FArrayBox as a set of multi-dimensional arrays for each variable.

Lets assume for this example that we are in a context where we are given a FArrayBox and we want to access the variables of this patch. In order to so we need an equation object which interprets the raw data.
struct MyClass {  using Complete = ::fub::Complete<PerfectGas<3>>;  using Conservative = ::fub::Conservative<PerfectGas<3>>;  void foo(::amrex::FArrayBox& raw_data) {    // Transform the raw data object to a View object.    auto mutable_states = MakeView<Complete>(raw_data, equation);    auto const_states = MakeView<const Complete>(raw_data, equation);    auto conservatives = MakeView<Conservative>(raw_data, equation);    // Iterate through all global grid indices    ForEachIndex(Box<0>(const_states), [=](int i, int j, int k) {      // Access the variables      mutable_states.density(i, j, k) = 1.0;      conservatives.momentum(i, j, k, 0) = 1.0 + const_states.density(i, j, k);      conservatives.momentum(i, j, k, 1) = 0.0;      conservatives.momentum(i, j, k, 2) = 0.0;      // The objects view the same memory.      assert(const_states.momentum(i, j, k, 0) == conservatives.momentum(i, j, k, 0));      assert(const_states.momentum(i, j, k, 1) == conservatives.momentum(i, j, k, 1));      assert(const_states.momentum(i, j, k, 2) == conservatives.momentum(i, j, k, 2));    });  }  PerfectGas<3> equation;};

Once we have a View object that gives variable-wise access of multi-dimensional data we can load and store state objects, such as Complete<Equation> and Conservative<Equation>, from and to memory locations inidicated by global space indices (i, j, k).

We can lift a function that is a defined for state equations, such as Complete<Equation>, to a function which is defined on a multi-dimensional array View<Complete<Equation>> by applying its logic for each index.
struct MyClass {  using Complete = ::fub::Complete<PerfectGas<3>>;  using Conservative = ::fub::Conservative<PerfectGas<3>>;  void Foo(Complete& state) {    state.density = 1.0;    state.momentum[0] = 1.0 + state.pressure;    state.momentum[1] = 0.0;    state.momentum[2] = 0.0;  }  void LiftedFoo(const View<Complete>& view) {    ForEachIndex(Box<0>(view), [=](int i, int j, int k) {      Load(state, view, {i, j, k});      Foo(state);      Store(view, state, {i, j, k});    });  }  PerfectGas<3> equation;  Complete state(equation);};

The member function LiftedFoo in this example can have multiple equivalent implementations that differ in their efficiency. Its real implementation is often considered an implementation detail and might change.

3.2. Implement a new FluxMethod, the simple case

A class FM satisfies the concept FluxMethod<Equation, StencilSize> if the following constraints are satisfied.

template <typename FM, typename Equation, int StencilSize>concept FluxMethod = requires (FM& flux_method,                               Conservative<Equation>& numeric_flux,                               span<const Complete<Equation>, StencilSize> stencil,                               double dx, Duration dt, Direction dir) {  { flux_method.ComputeNumericFlux(numeric_flux, stencil, dx, dt, dir) };  { flux_method.ComputeStableDt(stencil, dx, dir) } -> Duration;  { FM::GetStencilSize() } -> std::integral_constant<int, StencilSize>;};
For example, the following declaration of the class MusclHancockMethod satisfies this concept.
struct MusclHancockMethod {    using Conservative = ::Conservative<PerfectGas<2>>;    using Complete = ::Complete<PerfectGas<2>>;    void ComputeNumericFlux(Conservative& cons, span<const Complete, 4> stencil,                              double dx, Duration dt, Direction dir);    Duration ComputeStableDt(span<const Complete, 4> stencil, double dx, int dir);    std::integral_constant<int, 2> GetStencilSize() const noexcept { return {}; }};

The implemented MUSCL-type flux methods for an equation Equation satisfy FluxMethod<Equation, 4> and are implemented in two steps. First, we reconstruct a state to the left and the right of the face in question. This gives a reduction of the stencil array from Complete state[4] to Complete reconstruced_states[2]. Secondly, we call a (lower-order) base method BaseFM which satisfies FluxMethod<Equation, 2>.

4. Using Docker to share and persist a simulation

4.1. How to run an existing simulation

We describe in the following how to use docker to run the Divider2D application.

  1. Install docker via https://www.docker.com/

  2. Open a Terminal or Powershell in windows

  3. Download the docker image that contains the Divider2D example via

$ docker pull maikelnadolski/divider2d
  1. Run the fish command as the amrex user and mount your $HOME directory on the host /home/amrex/volume within the container

$ docker run -it -v $HOME:/home/amrex/volume --user amrex -w /home/amrex maikelnadolski/divider2d fishWelcome to fish, the friendly interactive shellType <code data-opaque bs-autolink-syntax='`help`'>help</code> for instructions on how to use fish⋊> ~ ls -l                                                                                                                                                                                                 07:09:35total 9132-rwxr-xr-x  1 amrex  amrex  9120504 Jan  8 21:22 AMReX.EB.Divider2D*-rw-r--r--  1 amrex  amrex     3408 Jan  8 21:29 Divider2D.py-rw-r--r--  1 amrex  amrex     2969 Jan  8 21:51 VisualizeHdf5.py-rw-r--r--  1 amrex  amrex     1433 Jan  8 21:33 VisualizePlotfiles.pydrwxr-xr-x  1 amrex  amrex     4096 Jan  8 20:18 amrex/drwxr-xr-x 64 maikel maikel   45056 Jan 11 06:26 volume/-rw-r--r--  1 amrex  amrex    27081 Jan  8 18:33 wall_1.txt-rw-r--r--  1 amrex  amrex    54000 Jan  8 18:33 wall_2.txt-rw-r--r--  1 amrex  amrex    81078 Jan  8 18:33 wall_3.txt⋊> ~

On windows, you need to provide the HOST path directly as in the following command

$ docker run -it -v C:/Users/Studi:/home/amrex/volume --user amrex -w /home/amrex maikelnadolski/divider2d fish

If you run into problems regarding the shared memory capacity of your docker container you can try to use the option --shm-size=512m to increase it. For example as in

$ docker run -it -v $HOME:/home/amrex/volume --shm-size=512m --user amrex -w /home/amrex maikelnadolski/divider2d fish
  1. Test the simulation by running the examples with the provided input file

The folowing command will execute the application (AMReX.EB.Divider2D) with a given default input file (Divider2D.py). This default output will be located within your running docker container.

Its output should be something like the following snippet

⋊> ~ OMP_NUM_THREADS=1 mpiexec AMReX.EB.Divider2D --config Divider2D.py                                                                                                                                    07:09:39MPI initialized with 4 MPI processesMPI initialized with thread support level 0OMP initialized with 1 OMP threadsAMReX (20.07-dirty) initialized2021-Jan-11 07:11:41.057392 -- [info] Equation:2021-Jan-11 07:11:41.057507 -- [info]  - gamma = 1.42021-Jan-11 07:11:41.058302 -- [info]  - Rspec = 287.0582021-Jan-11 07:11:41.058344 -- [info] GridGeometry:2021-Jan-11 07:11:41.058368 -- [info]  - cell_dimensions = {800, 344}2021-Jan-11 07:11:41.058395 -- [info]  - coordinates:lower = {0, -0.045}2021-Jan-11 07:11:41.058420 -- [info]  - coordinates:upper = {0.23, 0.055}2021-Jan-11 07:11:41.058443 -- [info]  - periodicity = {0, 0}2021-Jan-11 07:11:41.058475 -- [info] PatchHierarchy:2021-Jan-11 07:11:41.058498 -- [info]  - max_number_of_levels = 12021-Jan-11 07:11:41.058521 -- [info]  - refine_ratio = {2, 2}2021-Jan-11 07:11:41.058544 -- [info]  - blocking_factor = {8, 8}2021-Jan-11 07:11:41.058566 -- [info]  - max_grid_size = {800, 344}2021-Jan-11 07:11:41.058588 -- [info]  - n_err_buf = {0, 0}2021-Jan-11 07:11:41.058610 -- [info]  - grid_efficiency = 0.72021-Jan-11 07:11:41.058633 -- [info]  - n_proper = 12021-Jan-11 07:11:41.058653 -- [info]  - ngrow_eb_level_set = 92021-Jan-11 07:11:41.058674 -- [info]  - cutcell_load_balance_weight = 62021-Jan-11 07:11:41.058704 -- [info]  - remove_covered_grids = false2021-Jan-11 07:11:41.058726 -- [info] Read Wall Data...2021-Jan-11 07:11:41.065565 -- [info] Compute EB level set data...2021-Jan-11 07:11:50.140497 -- [info] Post-Shock-State:2021-Jan-11 07:11:50.140497 -- [info] 	density: 1.22 [kg/m^3]2021-Jan-11 07:11:50.140497 -- [info] 	velocity: 0 0 [m/s]2021-Jan-11 07:11:50.140497 -- [info] 	pressure: 101325 [Pa]2021-Jan-11 07:11:50.140804 -- [info] Calculated Pre-Shock-State:2021-Jan-11 07:11:50.140804 -- [info] 	density: 1.42628 [kg/m^3]2021-Jan-11 07:11:50.140804 -- [info] 	velocity: 54.2485       0 [m/s]2021-Jan-11 07:11:50.140804 -- [info] 	pressure: 126150 [Pa]2021-Jan-11 07:11:50.172436 -- [info] Reconstruction: Characteristics2021-Jan-11 07:11:50.172533 -- [info] scratch_gcw = 22021-Jan-11 07:11:50.172568 -- [info] flux_gcw = 02021-Jan-11 07:11:50.184254 -- [Plotfile] [info] [T =            0s] Write Plotfile output to 'Divider_DE5_800/Plotfiles/plt000000000'.2021-Jan-11 07:11:50.247063 -- [HDF5] [info] [T =            0s] Write Hdf5 output to 'Divider_c24_800.h5'.Table of Counters ---------------------------------------------------------------------------------------------------------------------------------------—<wbr>Counter Name          #Calls        Min [ms]        Max [ms]        Avg [ms]     StdDev [ms]     Percent [%]        cutcell::GriddingAlgorithm::InitializeHierarchy               1              31             587             329             211             3.5    cutcell::GriddingAlgorithm::MakeNewLevelFromScratch               1              31              33              32               1            0.34cutcell::IntegratorContext::ResetHierarchyConfiguration               1               9              12              11               1            0.12                cutcell::GriddingAlgorithm::LoadBalance               1               4               5               5               0           0.056          cutcell::IntegratorContext::CopyDataToScratch               1               1               4               3               1           0.033       cutcell::GriddingAlgorithm::PostProcessBaseGrids               1               0               0               0               0           2e-06===========================================================================================================================================================2021-Jan-11 07:11:50.375671 -- [info] RunOptions:2021-Jan-11 07:11:50.375965 -- [info]  - final_time = 0.001 [s]2021-Jan-11 07:11:50.376228 -- [info]  - max_cycles = -1 [-]2021-Jan-11 07:11:50.376509 -- [info]  - smallest_time_step_size = 1e-12 [s]2021-Jan-11 07:11:50.376932 -- [info]  - cfl = 0.8 [-]2021-Jan-11 07:11:50.377185 -- [info]  - do_backup = 0 [-]...

Attention: whenever you close the docker container all changes within the container will be lost. If you want to persist some changes, for example an input file, you need to commit the changes from a second terminal window as in

Darwin mos-mac-pro.hfi.lan 19.6.0 x86_6414:02  up 9 days, 14:09, 3 users, load averages: 10.48 6.31 4.14 ◰² base  ~  docker container list                                            CONTAINER ID   IMAGE                      COMMAND   CREATED         STATUS         PORTS     NAMES514cbfaf19cb   maikelnadolski/divider2d   "fish"    2 minutes ago   Up 2 minutes             sleepy_chaplygin ◰² base  ~  docker stop 514cbfaf19cb                                                                                                                   514cbfaf19cb ◰² base  ~  docker container list                                                                                                                          CONTAINER ID   IMAGE                      COMMAND   CREATED              STATUS              PORTS     NAMES53c5439c4f36   maikelnadolski/divider2d   "fish"    About a minute ago   Up About a minute             upbeat_varahamihira ◰² base  ~  docker commit 53c5439c4f36 mo/divider2d                                                                                                      sha256:1015bdde15f48ab76b00380a91095fc74cff76465da21480689756d440d4e20c ◰² base  ~  docker image ls                                                                                                                               REPOSITORY                 TAG       IMAGE ID       CREATED         SIZEmo/divider2d               latest    1015bdde15f4   9 seconds ago   1.24GBmaikelnadolski/divider2d   latest    e2e6be51eb4f   2 weeks ago     1.24GB
  1. Visualize the HDF5 output by executing VisualizeHdf5.py and the AMReX Plotfiles by VisualizePlotfiles.py

⋊> ~ python3  VisualizeHdf5.py                                                                                                                                                                             07:14:09Save figure to /home/amrex/Figures/Hdf5/Figure0000.png.Save figure to /home/amrex/Figures/Hdf5/Figure0001.png.Save figure to /home/amrex/Figures/Hdf5/Figure0002.png.Save figure to /home/amrex/Figures/Hdf5/Figure0003.png....⋊> ~ python3  VisualizePlotfiles.py                                                                                                                                                                        07:14:18/usr/lib/python3.9/_collections_abc.py:684: MatplotlibDeprecationWarning: The global colormaps dictionary is no longer considered public API.  self[key]yt : [INFO     ] 2021-01-11 07:14:29,846 Parameters: current_time              = 0.0yt : [INFO     ] 2021-01-11 07:14:29,846 Parameters: domain_dimensions         = [800 344   1]yt : [INFO     ] 2021-01-11 07:14:29,846 Parameters: domain_left_edge          = [ 0.    -0.045  0.   ]yt : [INFO     ] 2021-01-11 07:14:29,847 Parameters: domain_right_edge         = [0.23  0.055 1.   ]yt : [INFO     ] 2021-01-11 07:14:29,994 xlim = 0.000000 0.230000yt : [INFO     ] 2021-01-11 07:14:29,994 ylim = -0.045000 0.055000yt : [INFO     ] 2021-01-11 07:14:29,995 xlim = 0.000000 0.230000yt : [INFO     ] 2021-01-11 07:14:29,995 ylim = -0.045000 0.055000yt : [INFO     ] 2021-01-11 07:14:29,995 Making a fixed resolution buffer of (('boxlib', 'Density')) 800 by 800yt : [INFO     ] 2021-01-11 07:14:30,083 Making a fixed resolution buffer of (('boxlib', 'Pressure')) 800 by 800yt : [INFO     ] 2021-01-11 07:14:30,102 Making a fixed resolution buffer of (('boxlib', 'vfrac')) 800 by 800yt : [INFO     ] 2021-01-11 07:14:30,676 Making a fixed resolution buffer of (('boxlib', 'Density')) 800 by 344yt : [INFO     ] 2021-01-11 07:14:30,691 Making a fixed resolution buffer of (('boxlib', 'Pressure')) 800 by 344yt : [INFO     ] 2021-01-11 07:14:30,706 Making a fixed resolution buffer of (('boxlib', 'vfrac')) 800 by 344yt : [INFO     ] 2021-01-11 07:14:30,720 Making a fixed resolution buffer of (Pressure) 800 by 344yt : [INFO     ] 2021-01-11 07:14:30,736 Making a fixed resolution buffer of (Density) 800 by 344yt : [INFO     ] 2021-01-11 07:14:30,752 Making a fixed resolution buffer of (vfrac) 800 by 344/home/amrex/Divider_DE5_800//Plotfiles/plt000000000: 0.0, [ 0.     0.23  -0.045  0.055]Save figure to /home/amrex/Figures/Plotfiles/Figure0000.png.yt : [INFO     ] 2021-01-11 07:14:31,640 Parameters: current_time              = 0.000100000001yt : [INFO     ] 2021-01-11 07:14:31,640 Parameters: domain_dimensions         = [800 344   1]yt : [INFO     ] 2021-01-11 07:14:31,640 Parameters: domain_left_edge          = [ 0.    -0.045  0.   ]yt : [INFO     ] 2021-01-11 07:14:31,641 Parameters: domain_right_edge         = [0.23  0.055 1.   ]yt : [INFO     ] 2021-01-11 07:14:31,774 xlim = 0.000000 0.230000yt : [INFO     ] 2021-01-11 07:14:31,775 ylim = -0.045000 0.055000yt : [INFO     ] 2021-01-11 07:14:31,775 xlim = 0.000000 0.230000yt : [INFO     ] 2021-01-11 07:14:31,775 ylim = -0.045000 0.055000yt : [INFO     ] 2021-01-11 07:14:31,776 Making a fixed resolution buffer of (('boxlib', 'Density')) 800 by 800yt : [INFO     ] 2021-01-11 07:14:31,864 Making a fixed resolution buffer of (('boxlib', 'Pressure')) 800 by 800yt : [INFO     ] 2021-01-11 07:14:31,884 Making a fixed resolution buffer of (('boxlib', 'vfrac')) 800 by 800yt : [INFO     ] 2021-01-11 07:14:32,325 Making a fixed resolution buffer of (('boxlib', 'Density')) 800 by 344yt : [INFO     ] 2021-01-11 07:14:32,340 Making a fixed resolution buffer of (('boxlib', 'Pressure')) 800 by 344yt : [INFO     ] 2021-01-11 07:14:32,355 Making a fixed resolution buffer of (('boxlib', 'vfrac')) 800 by 344yt : [INFO     ] 2021-01-11 07:14:32,369 Making a fixed resolution buffer of (Pressure) 800 by 344yt : [INFO     ] 2021-01-11 07:14:32,384 Making a fixed resolution buffer of (Density) 800 by 344yt : [INFO     ] 2021-01-11 07:14:32,402 Making a fixed resolution buffer of (vfrac) 800 by 344/home/amrex/Divider_DE5_800//Plotfiles/plt000000182: 0.000100000001, [ 0.     0.23  -0.045  0.055]Save figure to /home/amrex/Figures/Plotfiles/Figure0001.png....
  1. Copy the figures to a location of your host computer. You need a directory that is writable for others.

On Unix-like machines you can do on your host side

$ mkdir $HOME/docker-output$ chown a+w $HOME/docker-output

Then copy from within your docker container

⋊> ~ cp -r Figures/ volume/docker-output
  1. Adjust the provided input file Divider2D.py by your needs

⋊> ~ cp Divider2D.py volume/docker-output# Edit the config file⋊> ~ OMP_NUM_THREADS=1 mpiexec AMReX.EB.Divider2D --config volume/docker-output/Divider2D.py

For reference, the provided config file is

import math############################################################################# These variables are only auxiliary and are not directly used by the app #def nCellsY(nCellsX, ratio, blocking_factor=8):    base = int(nCellsX * ratio)    ncells = base - base % blocking_factor    return ncellsxlower = 0.0xupper = 0.23xlen = xupper - xlowerylower = -0.05 + 0.005yupper = +0.05 + 0.005ylen = yupper - ylowerblocking_factor = 8nx = 800ny = nCellsY(nx, ylen / xlen, blocking_factor=blocking_factor)n_level = 1n_error_buf = 0 if n_level == 1 else 1# The output files are written in this directory from the perspective of this # docker containerbase_path = '/home/amrex'############################################################################# These variables and dictionaries will be read by the application#Equation = {  # 'gamma': 1.4,  # 'Rspec': 287#}RunOptions = {  'cfl': 0.8,  'final_time': 1e-3,  'do_backup': False,  'max_cycles': -1, # -1 means infinite and 0 means only initial condition}# This option defines the Mach number of the shock# Default is 1.1Mach_number = 1.1reconstruction = "Characteristics"GridGeometry = {  # This option tells the solver how many cells to use  'cell_dimensions': [nx, ny, 1],  # This option defines the coordinates of the computational domain  'coordinates': {    'lower': [xlower, ylower, +0.00],    'upper': [xupper, yupper, +0.10],  },  # We have no periodicity in Divider  'periodicity': [0, 0, 0]}# defines the number of ghost cellsscratch_gcw = 2 if n_level == 1 else 4# defines the number of ghost facesflux_gcw = scratch_gcw - 2PatchHierarchy = {  # Defines the number of refinement levels  # 1 means no adaptive refinement  'max_number_of_levels': n_level,  # Set this to 1 if max_number_of_levles > 1  'n_error_buf': [n_error_buf, n_error_buf, n_error_buf],  # Defines the maximal size of a single patch  # patches can by smaller thou  'max_grid_size': [nx, ny, 1],  # Do not change this, it defines how many ghost cells are needed for the  # cut-cell geometry  'ngrow_eb_level_set': max(scratch_gcw + 1, 9),  # If a patch is completely covered by behind cut-cells remove them from the grid  'remove_covered_grids': False,  # Every patch size is a multiple of blocking_factor (in each direction)  # i.e. blocking_factor = 8 means patches have the size of 8 or 16 or 24 or ...  'blocking_factor': [blocking_factor, blocking_factor, blocking_factor],  # How many cells are needed inbetween AMR levels  'n_proper': 1,}# Adjust those paths to read the files that describe the wall boundaries for the Divider.# The first and the last point need within each wall file need to be equalwall_filenames = ['{}/wall_1.txt'.format(base_path),                  '{}/wall_2.txt'.format(base_path),                  '{}/wall_3.txt'.format(base_path)]# Defines the Output = {	'outputs': [  # Write AMReX-output directories. This output preserves the AMR hierarchy   # It is readable from Paraview, VisIt and Python  {'type': 'Plotfiles', 'directory': 'Divider_DE5_{}/Plotfiles'.format(nx), 'intervals': [1e-4]},  # Write simple HDF5 files  # It is faster and writes a single grid without patches  {'type': 'HDF5', 'path': 'Divider_c24_{}.h5'.format(nx), 'intervals': [1e-5]},  # Print out timer statistics  {'type': 'CounterOutput', 'intervals': [1e-4] },]}

The usual workflow is to

  • Copy the provided input file to your HOST system and edit them

  • Run the application from within the docker container using the input file on your HOST machine instead of the provided one.

           ⋊> ~ OMP_NUM_THREADS=1 mpiexec AMReX.EB.Divider2D --config volume/docker-output/Divider2D.py
  • Reiterate and change more settings

  • Copy publication relevant input files and auxiliary files into the container. Then commit the container to a named image in order to persist it.

If you wish to write the output files directly in the ouput folder replace the following in devider2d*.py as Divider2D_output_on_windows.py The hdf output will be directly written in the windows "docker_output" folder.

  # Defines the   Output = {      'outputs': [    # Write AMReX-output directories. This output preserves the AMR hierarchy     # It is readable from Paraview, VisIt and Python    #{'type': 'Plotfiles', 'directory': 'DividerDE5{}/Plotfiles'.format(nx), 'intervals': [1e-4]},    # Write simple HDF5 files    # It is faster and writes a single grid without patches    {'type': 'HDF5', 'path': 'volume/docker_output/Dividerc24{}.h5'.format(nx), 'intervals': [1e-5]},    # Print out timer statistics    {'type': 'CounterOutput', 'intervals': [1e-4] },  ]  }
And then run
  OMP_NUM_THREADS=1 mpiexec AMReX.EB.Divider2D --config volume/docker_output/Divider2D_output_on_windows.py

Conformance

Conformance requirements are expressed with a combination of descriptive assertions and RFC 2119 terminology. The key words “MUST”, “MUST NOT”, “REQUIRED”, “SHALL”, “SHALL NOT”, “SHOULD”, “SHOULD NOT”, “RECOMMENDED”, “MAY”, and “OPTIONAL” in the normative parts of this document are to be interpreted as described in RFC 2119. However, for readability, these words do not appear in all uppercase letters in this specification.

All of the text of this specification is normative except sections explicitly marked as non-normative, examples, and notes. [RFC2119]

Examples in this specification are introduced with the words “for example” or are set apart from the normative text with class="example", like this:

This is an example of an informative example.

Informative notes begin with the word “Note” and are set apart from the normative text with class="note", like this:

Note, this is an informative note.

References

Normative References

[RFC2119]
S. Bradner. Key words for use in RFCs to Indicate Requirement Levels. March 1997. Best Current Practice. URL: https://tools.ietf.org/html/rfc2119

Informative References

[AMReX]
Weiqun Zhang; Ann Almgren. AMReX Github Project. URL: http://github.com/AMReX-Codes/amrex
[HDF5]
Tab Atkins; Dirk Schultze. Foo Bar Level 1. CR. URL: http://www.w3.org/TR/foo-bar/
[Klein2009]
Rupert Klein; Nikiforakis. Foo Bar Level 1. CR. URL: http://www.w3.org/TR/foo-bar/
[P4EST]
Tab Atkins; Dirk Schultze. Foo Bar Level 1. CR. URL: http://www.w3.org/TR/foo-bar/
[SAMRAI]
Tab Atkins; Dirk Schultze. Foo Bar Level 1. CR. URL: http://www.w3.org/TR/foo-bar/
